PUMP INFORMATION

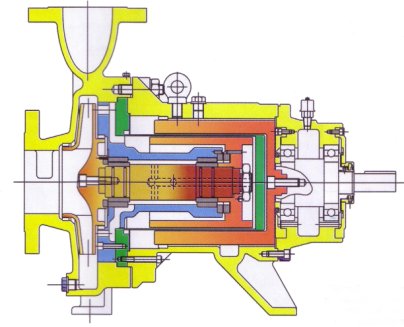

OVERHUNG IMPELLER, CLOSE COUPLED, SINGLE STAGE, END SUCTION

(MAGNETIC DRIVE PUMP)

This is a sealless volute type pump and is used for fluids that are corrosif, volatile, high temperature, solids beaings liquids, radioactive and toxic fluids. This type of pump is used where leaks, even the smallest, cannot be tolerated.

For parts diagram see Hydraulic Institute

For an example see: http://www.hmdkontro.com
